NEW – BX620T
NEW – BX620T
Engineered for high-volume environments – Wide-format printing without compromise.
- Tailored Solutions Partner
- Dedicated UK Support
- Trusted Technology for Business

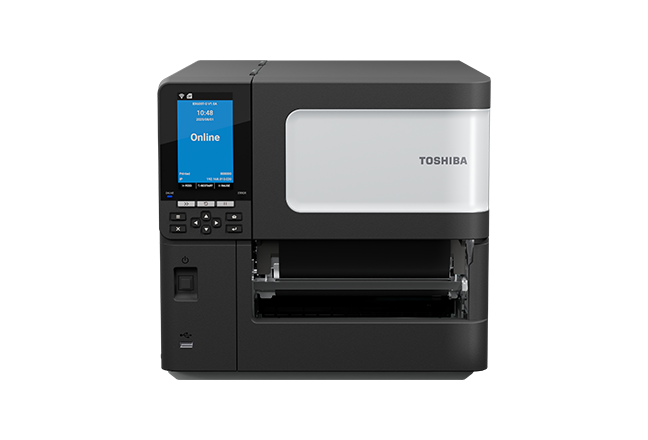

Thermal transfer wide-web industrial printer
Ideal for businesses transitioning from legacy systems, the BX620T supports thermal transfer printing with flat-head technology, tailored for 6” label formats.
Key Features:
Seamless integration with existing infrastructure.
Benefits from centred media alignment for consistent print quality across the label and from label to label.
Produces long-lasting labels suitable for pallet and drum labelling, automotive part identification and outdoor asset tagging.
Perfect for logistics, infrastructure and compliance labelling.
Key Specifications
| BX620T | |
| Printing Method | Direct thermal / thermal transfer |
| Print Head Type/Alignment | Flat headedge / Centred |
| Resolution | GS02: 203 dpi (8 dots/mm) TS02: 305 dpi (12 dots/mm) |
| Memory | 1 GB RAM, 8 GB ROM |
| Interface | USB 2.0 HS (USB host/HID support), LAN 10/100/1000 BaseT, RS232(1), WLAN 802.11ac/a/b/g/n/ax(1), Bluetooth 5.2(1), Expansion I/O(1) |
| Print Width/Length | 47–162 mm / Batch: 6–1,498 mm, Cut: 21.4–1,498 mm, Peel-off 21.4–1,496 mm |
| Print Speed | Max. 305 mm/second (12 ips) |
| Dimensions & Weight | 331 x 460 x 310 mm, 18.4 kg |
| Standard Ribbon Lengths | 600 m |
| Emulations | Auto-detection of TPCL, ZPL II, DPL, SBPL, IPL, PDF |
| Options | Disc cutter, Peel-off, External media guide, Serial RS232, WLAN + Bluetooth, Expansion I/O, Real time clock (standard), Cover damper (standard) |
